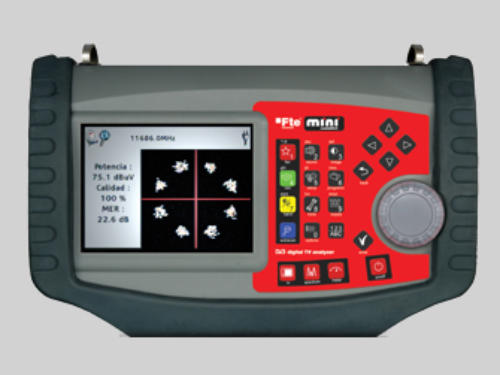

mediaMAX MINI S2CT HD
Frequency (MHz):5-862 // 900-2150
Input level (dBuV):TV: 20-125 / SAT: 30-125
Connectors:"F" type (male) (+ FBU-FBU Adaptor)
Protection:±50 VDC, 130dBμV (3V RMS)
Attenuator:0-60 dB, AUTO range mode selectable
Display:Horizontal sweep and logaritmic amplitude
Span:Full, 500, 200, 100, 50, 20 or 10 MHz
Resolution filters:300 kHz
Accuracy:±1.5 dB @ 25ºC of environment temperature after a heating of
30 minutes
Power supply:0V, 5V, 12V, 13V, 18V,13V+22KHz,18V+22KHz and 24V
Analog signals measurements:Level, Video/Audio level, C/N, sync pulse
DVB-C (QAM) measurements:Channel Power, Noise Margin, BER before
and after Viterbi, MER, Wrong Packets
DVB-S (QPSK) measurements:Channel Power,Noise Margin, C/N, BER
before and after Viterbi, MER, Wrong Packets
DVB-S2 (QPSK and 8PSK) measurements:Channel Power, Noise Margin,
C/N, BER before and alter of the decoder LDPC/ BCH, MER, Wrong Packets
DVB-T (COFDM) measurements:Channel Power, Noise Margin, C/N, BER
before and after Viterbi, MER, Wrong Packets
Memories:1000 programs
Monitor:5" TFT color
Auxiliary inputs / outputs:analog A/V (minijack), RS-232, USB
Constellation:DVB-C/DVB-T/DVB-S/DVB-S2
Battery type:Li - Ion (30W/hour)
Battery life:2 h without LNB power supply
Dimensions (mm):270x170x70 + bag
Weight (Kg):1,850
APARATE DE MĂSURĂ:
mediaMAX MINI ST
Frequencies:47-862 MHz / 900-2150 MHz
Input level (dBuV):TV: 20-125 / SAT: 30-125
Connectors:"F" type (male) (+ FBU-FBU Adaptor)
Protection:±50 VDC, 130dBμV (3V RMS)
Attenuator: 0-60 dB, AUTO range mode selectable
Display mode:Horizontal sweep and logaritmic amplitude
Span:Full, 500, 200, 100, 50, 20 or 10 MHz
Resolution filters:1 MHz
Accuracy:±1.5 dB @ 25ºC of environment temperature after a heating of
30 minutes
LNB power supply:0, 5V, 13V, 18V, 13V+22Khz and 18V+22Khz
Analog signals measurements:Level, Video/Audio level, C/N, sync pulse
DVB-S (QPSK) measurements:Power, Quality, BER before and after
Viterbi, non recovered errors, C/N, MER
DVB-T (COFDM) measurements:Power, Quality, BER before and after
Viterbi, non recovered errors, MER, C/N
Memories:1000 programs
Monitor:5" color TFT
Auxiliary inputs / outputs:analog A/V (minijack), RS-232, USB
Battery type: Li - Ion (30W/hour)
Battery life: 2 h without LNB power supply
Dimensions (mm): 270x170x70 + bag
Weight (Kg): 1,850
mediaMAX MINI S2T HD
Frequencies:47-862 MHz / 900-2150 MHz
Input level (dBuV):TV: 20-125 / SAT: 30-125
Connectors:"F" type (male) (+ FBU-FBU Adaptor)
Protection:±50 VDC, 130dBμV (3V RMS)
Attenuator:0-60 dB, AUTO range mode selectable
Display mode:Horizontal sweep and logaritmic amplitude
Span:Full, 500, 200, 100, 50, 20 or 10 MHz
Resolution filters:1 MHz
Accuracy:±1.5 dB @ 25ºC of environment temperature after a heating of
30 minutes
LNB power supply:0, 5V, 13V, 18V, 13V+22Khz and 18V+22Khz
Analog signals measurements:Level, Video/Audio level, C/N, sync pulse
DVB-S (QPSK) measurements:Channel Power, Quality, C/N, BER before
and after Viterbi, MER, Wrong Packets
DVB-S2 (QPSK and 8PSK) measurements:Channel Power, Quality, C/N,
BER before and alter of the decoder LDPC/ BCH, MER, Wrong Packets
DVB-T (COFDM) measurements:Channel Power, Quality, C/N, BER
before and after Viterbi, MER, Wrong Packets
Memories:1000 programs
Monitor:5" color TFT
Auxiliary inputs / outputs:analog A/V (minijack), RS-232, USB
Battery type:Li - Ion (30W/hour)
Battery life:2 h without LNB power supply
Dimensions (mm): 270x170x70 + bag
Weight (Kg):1,850
